How does a Distributed Antenna System or DAS enhance wireless coverage and signal strength in large buildings or venues?
In our interconnected age, it is essential to have dependable wireless connectivity. A DAS system provides an effective and efficient way to improve coverage and signal power in both indoor and outdoor settings. The scalability of Distributed Antenna System (DAS) technology has made it increasingly popular in various industries and settings, playing a critical role in our wireless infrastructure. When you find yourself at a crowded place or inside a building with weak reception, remember that a DAS system might be a solution that would address the situation and allow for your connection to remain intact.
A Distributed Antenna System (DAS) is a collection of active equipment and a passive set of antennas and cabling strategically designed to improve wireless coverage and signal power in a building, venue, or campus. It is comprised of a central hub, called a headend, which connects the carrier equipment to distribution equipment that connects multiple remote radio units (RRUs) using fiber optic cables. Remote radio units (RRUs) are then linked to distributed antennas spread throughout the intended area, such as a building, university, or sports arena. DAS can be tailored to accommodate different wireless technologies such as 4G and 5G signals, and public safety communications.
What are the differences between a booster, a DAS, and a small cell network?
Wide band repeaters or amplifiers, commonly called boosters, are widely utilized to enhance the range of wireless networks. Their functionality involves capturing existing signals emitted by nearby cell towers and amplifying it within a specified area. Subsequently, this amplified signal is distributed to offer improved coverage in regions with inadequate reception.
Boosters are available in configurations, ranging from compact portable devices to larger units permanently installed within buildings. They can be employed for diverse network types like 4G, and 5G carrier signals. A notable advantage of utilizing boosters is their compatibility with all carriers, eliminating the need for specialized equipment or network configurations, but limitations of boosters are large spaces and locations where there is insufficient outdoor signal to boost indoors.
Distributed Antenna Systems (DAS) are more complex solutions compared to boosters. They consist of a network of a headend where carriers connect to the system, optical distribution equipment, remote radios, and a system of antennas, coax, and couplers that distribute the amplified signal throughout a designated area. DAS systems require professional installation and coordination with the carriers in order to cover larger areas such as buildings, stadiums, or campuses. They are commonly used in high-density areas where several users are trying to access the network simultaneously.
Small cell networks are a type of wireless infrastructure that uses small, low-power cellular base stations to provide coverage in specific areas. These can consist of standalone eFemto or Microcells, or a network of small cells that has a POE architecture similar to a Wi-Fi system. These networks are usually used in densely populated areas with high mobile usage, such as shopping malls or office buildings. Small cell networks can be connected to the internet through broadband or dedicated connections and support multiple carriers.
What are the key components of a DAS, and how do they interact to provide coverage?

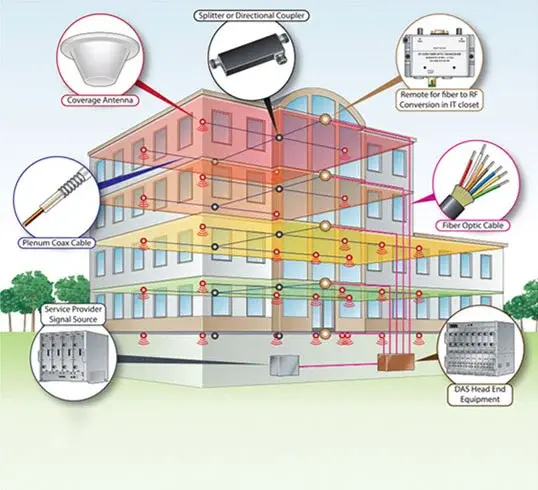

A Distributed Antenna System (DAS) is a network of specialized equipment and spatially separated antenna nodes that provide wireless service within a particular geographic area or structure. A DAS has three critical components: the signal source, distribution system, and antennas.
Signal Source: The signal source is typically a small cell, femtocell, picocell, or connection to a local macrocell. It provides the initial input signal that will be distributed throughout the area.
Distribution System: This is the middle component of a DAS. It takes the signal from the source, conditions it, changes it to an optical signal for distribution to the remote radios, which change the signal into radio frequency (RF) for transmission to your device via the antennas and coax layer of the system. .
Antenna and Coax Layer: The antenna and coax layer of the system take the RF signal from the remotes and distributes this signal via a network of couplers, splitters and antennas interconnected by coaxial cable. This system is very specifically designed to provide optimal performing 4G and 5G wireless carrier signals. .
The interaction among these components is straightforward. The signal source inputs the signal into the head end. The fiber equipment and remotes then carries the signal to the antenna layer. The antenna layer is interconnected by coax and couplers, and broadcasts the signal in its coverage area, providing wireless service to users. This process also works in reverse for signals from users to the network.
What are the challenges in planning and implementing a DAS?
Designing and setting up a Distributed Antenna System (DAS) is not easy because there are many challenges to consider. These challenges can include technical difficulties and financial limitations, and they require careful planning and coordination to overcome.
The cost of buying, installing, and maintaining a DAS can be significant depending on the facility, size, and situation. The initial investment can be expensive since the system needs advanced equipment like antennas, amplifiers, and fiber optic equipment. Additionally, maintenance is necessary to ensure the system works well and meets wireless standards. These factors can increase the overall cost of owning a DAS.
Balancing Coverage and Capacity
One of the critical challenges in designing a DAS is balancing coverage and capacity. The system needs to provide adequate coverage without compromising on capacity, as both are essential for providing seamless wireless connectivity. This requires diligent planning and optimization to ensure that the DAS system can handle the expected user load.
Coordination with Multiple Stakeholders
Designing and implementing a DAS involves various stakeholders, including property owners, tenants, wireless service providers, and municipal authorities. Coordinating with these stakeholders can be complex and time-consuming. Each stakeholder may have requirements and constraints to consider while designing the DAS.
Keeping Up with Evolving Standards
Another significant challenge in implementing a DAS is keeping up with and planning to the best of ones ability for the rapid evolution of wireless systems. With new technologies being introduced regularly, the DAS must be flexible enough to support future needs. This requires careful planning and foresight while designing the system to balance the needs of today, cost, and future-readiness.
How does maintenance and monitoring work for a DAS system?
Maintenance and monitoring of a Distributed Antenna System (DAS) include regular system checks and monitoring to ensure optimal performance, as well as the troubleshooting and remediation of alarms or issues as they occur. Maintenance activities typically involve examining the system’s physical components, such as active equipment, antennas, and cables, checking for signal strength, and ensuring the system firmware and software is up-to-date.
Monitoring, on the other hand, is carried out continually and when a system problem or failure is detected the monitoring team begins the troubleshooting and remediation process. Technicians diagnose the issue, which could range from poor signal reception to hardware malfunction, and then employ the necessary corrective actions. Resolving the problem might sometimes involve adjusting the system configuration or replacing faulty components. Regular maintenance and prompt troubleshooting help ensure the DAS system remains reliable and operating optimally, providing seamless connectivity throughout the covered area.
Monitoring and periodic maintenance are crucial for the smooth functioning of a Distributed Antenna System (DAS). It ensures optimal performance and allows to proactively address issues in real time. In this section, we will discuss some critical tips for effective maintenance and troubleshooting of a DAS.
Regular Maintenance
Routine system checks and monitoring play a vital role in the maintenance of a DAS. These activities involve examining the system's physical components, such as antennas and cables, to ensure they are in good condition. Regular maintenance also includes checking for signal strength via benchmark walks, and ensuring all system software and firmware is up-to-date. This identifies any potential issues early on and take necessary actions to prevent any disruptions in connectivity.
Monitoring
Monitoring is an essential part of maintaining a DAS. It involves the use of monitoring software to visualize system status, then diagnosing and resolving any system issues or failures that may arise. Analysts, engineers and technicians work remotely and I the field through the use of specialized tools to identify the root cause of the problem, which could range from poor signal reception to faulty hardware components. Once the issue is identified, corrective actions are taken to resolve it promptly and efficiently.
